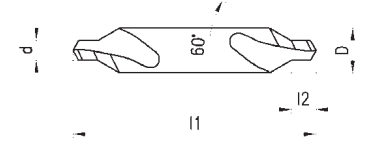

| Mã đặt hàng | d | D | l2 | l1 |
| mm | mm | mm | mm | |
| 251150.0100 | 0.5* | 3.15 | 0.6...0.9 | 25 |
| 251150.0200 | 0.8* | 3.15 | 1...1.3 | 25 |
| 251150.0300 | 1 | 3.15 | 1.3...1.7 | 31 |
| 251150.0400 | 1 | 4 | 1.3...1.7 | 35 |
| 251150.0500 | 1.6 | 4 | 2...2.6 | 35 |
| 251150.0600 | 1.5 | 5 | 2...2.6 | 40 |
| 251150.0700 | 2 | 5 | 2.5...3.1 | 40 |
| 251150.0800 | 2 | 6 | 2.5...3.1 | 45 |
| 251150.0900 | 2.5 | 6.3 | 3.1...3.8 | 45 |
| 251150.1000 | 2.5 | 8 | 3.1...3.8 | 50 |
| 251150.1100 | 3 | 8 | 3.9...4.6 | 50 |
| 251150.1200 | 3.15 | 8 | 3.9...4.6 | 50 |
| 251150.1300 | 3 | 10 | 3.9...4.6 | 55 |
| 251150.1400 | 4 | 10 | 5...5.9 | 55 |
| 251150.1500 | 5 | 12 | 6.3...7.2 | 63 |
| Mã đặt hàng | d | D | l2 | l1 |
| mm | mm | mm | mm | |
| 251150.0100 | 0.5* | 3.15 | 0.6...0.9 | 25 |
| 251150.0200 | 0.8* | 3.15 | 1...1.3 | 25 |
| 251150.0300 | 1 | 3.15 | 1.3...1.7 | 31 |
| 251150.0400 | 1 | 4 | 1.3...1.7 | 35 |
| 251150.0500 | 1.6 | 4 | 2...2.6 | 35 |
| 251150.0600 | 1.5 | 5 | 2...2.6 | 40 |
| 251150.0700 | 2 | 5 | 2.5...3.1 | 40 |
| 251150.0800 | 2 | 6 | 2.5...3.1 | 45 |
| 251150.0900 | 2.5 | 6.3 | 3.1...3.8 | 45 |
| 251150.1000 | 2.5 | 8 | 3.1...3.8 | 50 |
| 251150.1100 | 3 | 8 | 3.9...4.6 | 50 |
| 251150.1200 | 3.15 | 8 | 3.9...4.6 | 50 |
| 251150.1300 | 3 | 10 | 3.9...4.6 | 55 |
| 251150.1400 | 4 | 10 | 5...5.9 | 55 |
| 251150.1500 | 5 | 12 | 6.3...7.2 | 63 |
