| Mã đặt hàng | D | l1 | d | Alpha |
| mm | mm | mm | ||
| 251120.0100 | 3 | 40 | 0.5 | 60° |
| 251120.0200 | 4 | 45 | 1 | 60° |
| 251120.0300 | 6 | 55 | 2 | 60° |
| 251120.0400 | 8 | 65 | 2.5 | 60° |
| 251120.0500 | 10 | 75 | 3 | 60° |
| 251120.0600 | 12 | 85 | 3.5 | 60° |
| 251120.0700 | 16 | 90 | 4 | 60° |
| 251120.0800 | 20 | 100 | 5 | 60° |

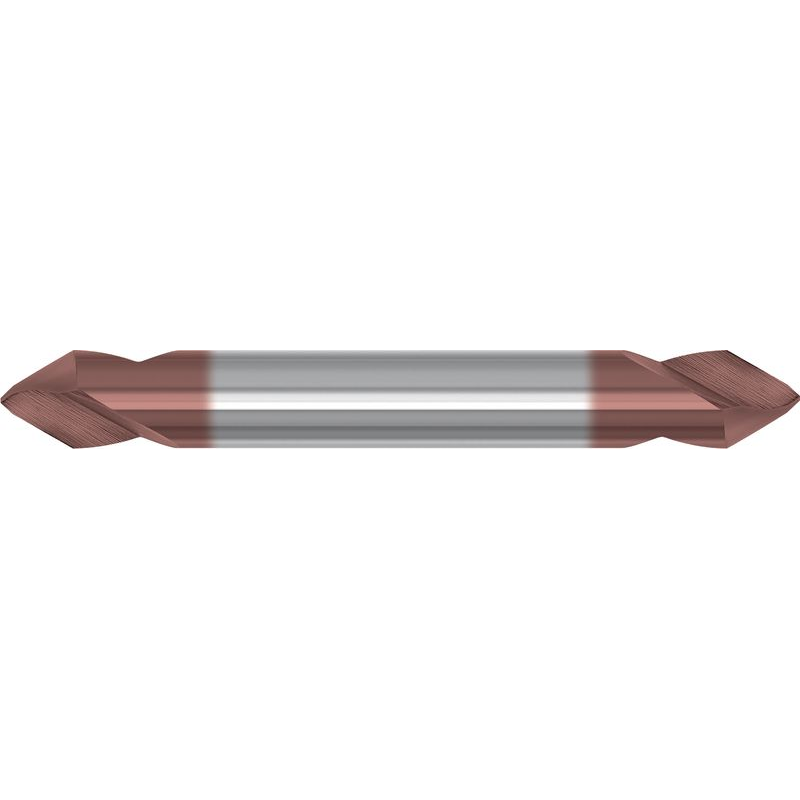

251120 - NC spotting drill 60° MAGAFOR

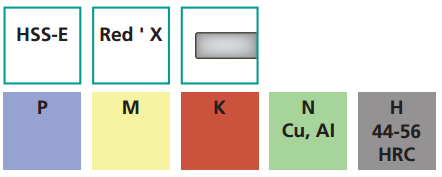

HSS-E Red ' X HSS-E, Red‘X, cylindrical shank.
up to 55 HRC.
The 118° point angle facilitates dipping while simultaneously reinforcing the point.
1 DUO-MAG = 2 single NC spotting drills.
tolerance D:h7
| Mã đặt hàng | D | l1 | d | Alpha |
| mm | mm | mm | ||
| 251120.0100 | 3 | 40 | 0.5 | 60° |
| 251120.0200 | 4 | 45 | 1 | 60° |
| 251120.0300 | 6 | 55 | 2 | 60° |
| 251120.0400 | 8 | 65 | 2.5 | 60° |
| 251120.0500 | 10 | 75 | 3 | 60° |
| 251120.0600 | 12 | 85 | 3.5 | 60° |
| 251120.0700 | 16 | 90 | 4 | 60° |
| 251120.0800 | 20 | 100 | 5 | 60° |
251120 - NC spotting drill 60° MAGAFOR
HSS-E Red ' X HSS-E, Red‘X, cylindrical shank.
up to 55 HRC.
The 118° point angle facilitates dipping while simultaneously reinforcing the point.
1 DUO-MAG = 2 single NC spotting drills.
tolerance D:h7
