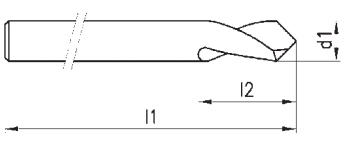

| Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 |
| mm | mm | mm | mm | mm | mm | ||
| 250150.0100 | 3 | 6 | 50 | 250150.0600 | 10 | 16 | 89 |
| 250150.0200 | 4 | 8 | 52 | 250150.0700 | 12 | 18 | 102 |
| 250150.0300 | 5 | 10 | 60 | 250150.0800 | 14 | 21 | 115 |
| 250150.0400 | 6 | 12 | 66 | 250150.0900 | 16 | 24 | 115 |
| 250150.0500 | 8 | 14 | 79 |
250150 - NC spotting drill 90° MAGAFOR Combi-Mag

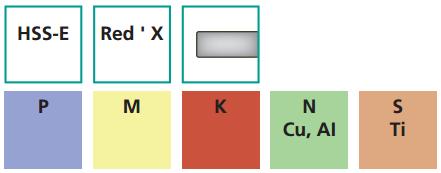

HSS-E Red ' X
HSS-E, Red-X, straight shank
5 operations:
Direct chamfering, centering, chamfering, drilling and contour chamfering
| Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 |
| mm | mm | mm | mm | mm | mm | ||
| 250150.0100 | 3 | 6 | 50 | 250150.0600 | 10 | 16 | 89 |
| 250150.0200 | 4 | 8 | 52 | 250150.0700 | 12 | 18 | 102 |
| 250150.0300 | 5 | 10 | 60 | 250150.0800 | 14 | 21 | 115 |
| 250150.0400 | 6 | 12 | 66 | 250150.0900 | 16 | 24 | 115 |
| 250150.0500 | 8 | 14 | 79 |
250150 - NC spotting drill 90° MAGAFOR Combi-Mag
HSS-E Red ' X
HSS-E, Red-X, straight shank
5 operations:
Direct chamfering, centering, chamfering, drilling and contour chamfering
