| Mã đặt hàng | 122420.0100 | 122420.0200 | 122420.0300 | 122420.0400 | |
| Kiểu | SI-45 | SI-90 | SI-914 | SI-180 | |
| Dải đo | mm | 0.4 | 0.8 | 0.08 | 0.16 |
| Độ phân giải | mm | 0.01 | 0.01 | 0.001 | 0.001 |
| Beze lØ | mm | 40 | 58 | 40 | 58 |
| Áp lực đo | N | 0.6...1.5 | 0.6...1.5 | 0.8...1.5 | 0.7...1.5 |
| Độ chính xác | µm | 9 | 7 | 3 | 4 |
| Lettering | 20...0...20 | 40...0...40 | 40...0...40 | 80...0...80 | |
| Protection antichoc | X | X | X | X | |
| Free lift | mm | 4.5 | 9 | 3.5 | 5 |

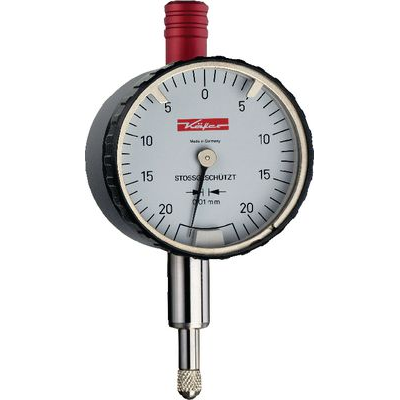

122420 - Dial gauge Käfer SI
Safety dial gauge with free lift and impact protection. Measurement is performed within the range of one bezel revolution. Rotatable bezel with tolerance markers. Spindle and thrust stem made of stainless steel.
Package contents:
Delivered in transport packaging.
Appropriate accessories:
Measuring inserts 124008; 124010
