| Mã đặt hàng | 123680.0100 | |
| Kiểu | Compika1001B | |
| Dải đo | mm | ±0.050 |
| Độ phân giải | mm | 0.001 |
| Áp lực đo | N | 1 |
| Độ chính xác | µm | 1.2 |
| Lettering | 50...0...50 | |
| Free lift | mm | 3 |

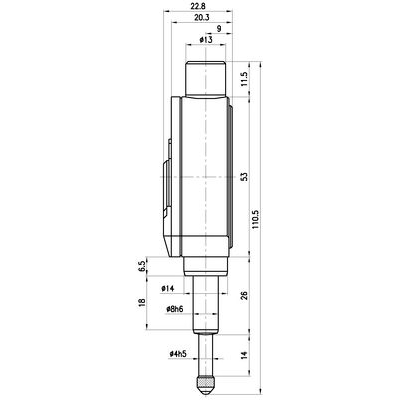

123680 - Analogue comparator Käfer COMPIKA
Version with impact protection and free lift, fie adjustment and movable tolerance markers, stem Ø 8 h6, exchangeable measuring insert M2.5. Spindle and thrust stem made of stainless steel.
Package contents:
Delivered in transport packaging incl. wire lifter.
Appropriate accessories:
Measuring inserts 124008; 124010
Note:
IP53 version on request
