| Mã đặt hàng | 122450.0100 | 122450.0200 | 122450.0400 | |
| Kiểu | KM4R | KM4/5R | M2/5R | |
| Dải đo | mm | 3 | 5 | 5 |
| Độ phân giải | mm | 0.01 | 0.01 | 0.01 |
| BezelØ | mm | 40 | 40 | 58 |
| Áp lực đo | N | 0.8...1.5 | 0.8...1.5 | 0.8...1.5 |
| 1revolution | mm | 0.5 | 0.5 | 1 |
| Độ chính xác | µm | 12 | 12 | 20 |
| Lettering | 0...50 | 0...50 | 0...100 |

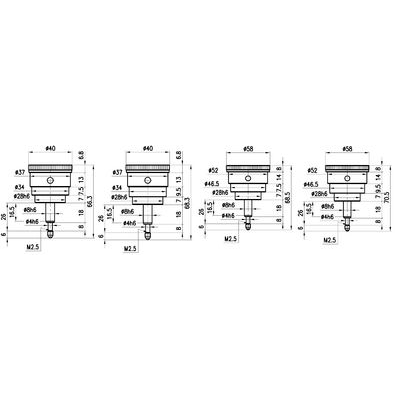

122450 - Perpendicular dial gauge Käfer
With back plunger. Easy reading from the top. The gauge is held either on the Ø 8 mm h6 thrust stem or on the Ø 28 mm spigot. Rotatable bezel with tolerance markers. Spindle and thrust stem made of stainless steel.
Package contents:
Delivered in transport packaging.
Appropriate accessories:
Measuring inserts 124008; 124010
