| Mã đặt hàng | 122370.0100 | 122370.0200 | 122370.0250 | 122370.0300 | 122370.0400 | 122370.0500 | |
| Kiểu | KM6T | KM4/5TOP | M2TK | M2TOP | M2TOPS | M2S | |
| Dải đo | mm | 3 | 5 | 10 | 10 | 10 | 10 |
| Độ phân giải | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Bezel Ø | mm | 32 | 40 | 58 | 58 | 58 | 58 |
| Áp lực đo | N | 0.3...1.5 | 0.8...1.5 | 0.3...1.5 | 0.8...1.5 | 0.8...1.5 | 0.3...1.5 |
| 1revolution | mm | 0.5 | 0.5 | 1 | 1 | 1 | 1 |
| Độ chính xác | µm | 10 | 12 | 15 | 15 | 15 | 15 |
| Lettering | 0...50 | 0...50 | 0...100 | 0...100 | 0...100 | 0...100 | |
| Protection antichoc | - | - | - | - | X | X | |

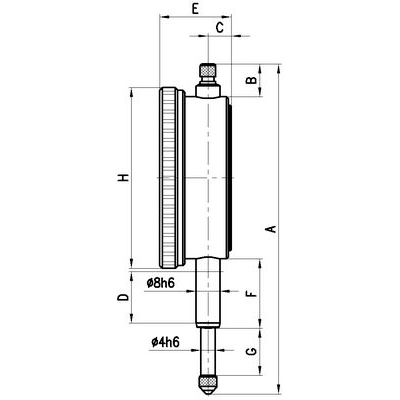

| A | mm | 66 | 74.5 | 108 | 105.5 | 105.5 | 120 |
| B | mm | 10 | 8 | 13 | 10.5 | 10.5 | 25 |
| C | mm | 6.5 | 7.3 | 7.5 | 7.5 | 7.5 | 7.5 |
| D | mm | 12 | 12 | 16.5 | 16.5 | 16.5 | 16.5 |
| E | mm | 18.9 | 21.1 | 23 | 23 | 23 | 23 |
| F | mm | 15.5 | 15.5 | 22 | 22 | 22 | 22 |
| G | mm | 4.5 | 8 | 15 | 15 | 15 | 15 |
| H | mm | Ø32 | Ø40 | Ø58 | Ø58 | Ø58 | Ø58 |

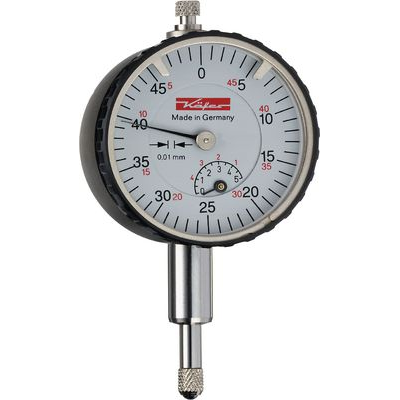

122370 - Dial gauge Käfer
Rotatable bezel with tolerance markers. Spindle and thrust stem made of stainless steel.
Designs:
M 2 TK: both hands concentrically arranged
M 2 TOP S: with impact protection
M 2 S: with fie adjustment of the pointer and impact protection
Package contents:
Delivered in transport packaging.
Appropriate accessories:
Measuring inserts 124008; 124010
