| Mã đặt hàng | 122360.0100 | 122360.0200 | 122360.0300 | 122360.0400 | 122360.0500 | |
| Kiểu | KM 5a | M 10a | M 10c | M 10d | GM 10/80 | |
| Dải đo | mm | 5 | 10 | 30 | 50 | 20 |
| Độ phân giải | mm | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| BezelØ | mm | 40 | 58 | 58 | 58 | 80 |
| Áp lực đo | N | 0.8...1.5 | 0.5...1.0 | 0.5...1.2 | 0.8...1.5 | 0.7...1.0 |
| 1revolution | mm | 5 | 10 | 10 | 10 | 10 |
| Độ chính xác | µm | 65 | 65 | 65 | 65 | 65 |
| Lettering | 0...5 | 0...10 | 0...10 | 0...10 | 0...10 |

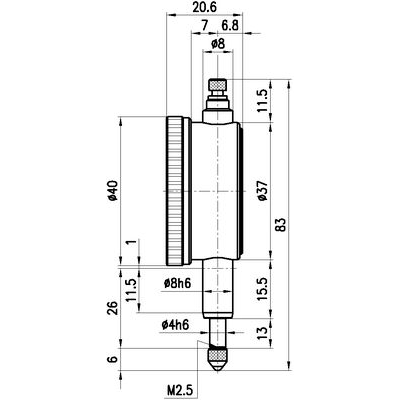

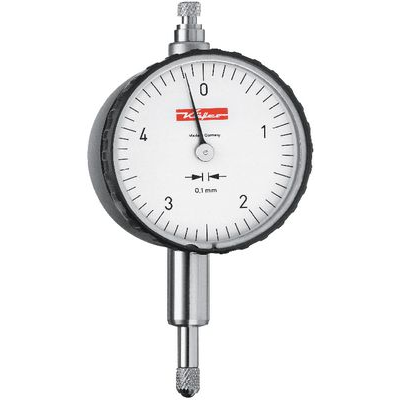

122360 - Dial gauge Käfer
For construction of large-scale equipment, locksmiths, woodworking, etc. Rotatable bezel. Spindleand thrust stem made of stainless steel.
Versions:
122360.0200...122360.0200: laterally offset thrust stem
Package contents:
Delivered in transport packaging.
Appropriate accessories:
Measuring inserts 124008; 124010
