| Mã đặt hàng | Kiểu | Dải đo | Dải đo | Áp lực đo | Độ chính xác | Tiêu chuẩn chống nước | Chiều cao số |
| mm | mm | N | µm | mm | |||
| 121712.0100 | 405MI | 12.5 | 0.01 | 2 | 20 | - | 10 |
| 121712.0200 | 410MI | 25 | 0.01 | 2 | 20 | - | 10 |
| 121712.0400 | 505MI | 12.5 | 0.001 | 2 | 4 | - | 10 |
| 121712.0600 | 505MIE | 12.5 | 0.001 | 2 | 4 | IP62 | 10 |

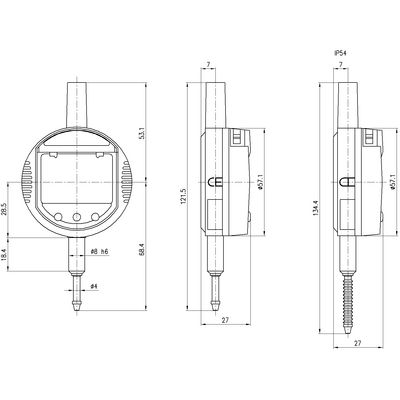

121712 - Dial gauge, digital TESA DIGICO 400 / 500
Digital dial gauge conforming to DIN 878.
Features:
Combined analog / digital display
Display rotation through 270°
Conversion mm / inch
Measuring modes ABS / REL
PRESET (fied value setting)
Mechanical tolerance marks
Limits display
Counting sense reversal
Data output Opto
Package contents:
Delivered in transport packaging incl. factory certifiate.
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
Appropriate accessories:
Signal lines 109145 /.0300 /.0700
Measuring inserts 124008; 124010
