| Mã đặt hàng | Kiểu | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác |
| mm | mm | N | µm | ||
121716.0100 |
705 MI |
12.5 |
0.001 |
2 |
4 |

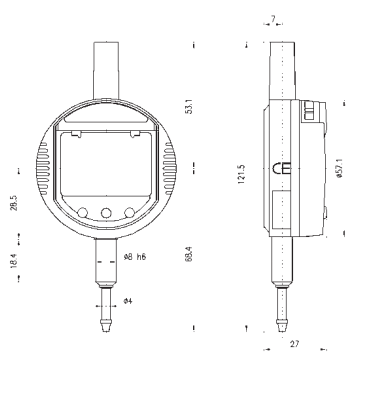

121716 - Dial gauge digital TESA DIGICO 705
Digital dial gauge conforming to DIN 878. For in conjunction with bore gauges with 2-pointcontact. Allows setting of the dial gauge on the smallest setting ring value.
Features:
Combined analog / digital display
Display rotation through 270°
Conversion mm / inch
Measuring modes ABS / REL
RESET (display zero setting)
PRESET (fied value setting)
Mechanical tolerance marks
Limits display
MAX / MIN / DELTA (TIR) function
Counting sense reversal
Data output Opto
Package contents:
Delivered in transport packaging incl. factory certifiate.
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
Appropriate accessories:
Signal lines 109145 /.0300 /.0700
Measuring inserts 124008; 124010
