| Mã đặt hàng | Kiểu | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Chiều cao số |
| mm | mm | N | µm | mm | ||
| 121714.0100 | 605MI | 12.5 | 0.001 | 2 | 4 | 10 |
| 121714.0200 | 610MI | 25 | 0.001 | 2 | 5 | 10 |

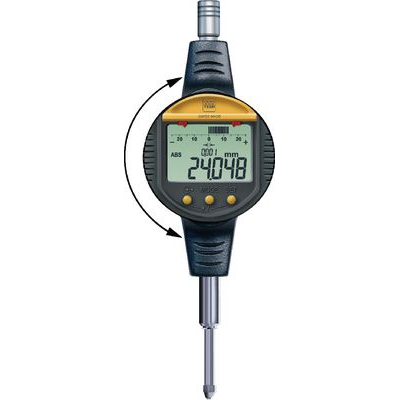

121714 - Dial gauge digital TESA DIGICO 600
Digital dial gauge conforming to DIN 878.
Features:
Combined analog / digital display
Display rotation through 270°
Conversion mm / inch
Measuring modes ABS / REL
RESET (display zero setting)
PRESET (fied value setting)
Mechanical tolerance marks
Limits display
MAX / MIN / DELTA (TIR) function
Counting sense reversal
Data output Opto
Package contents:
Delivered in transport packaging incl. factory certifiate.
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
Appropriate accessories:
Signal lines 109145 /.0300 /.0700
Measuring inserts 124008; 124010
| Mã đặt hàng | Kiểu | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Chiều cao số |
| mm | mm | N | µm | mm | ||
| 121714.0100 | 605MI | 12.5 | 0.001 | 2 | 4 | 10 |
| 121714.0200 | 610MI | 25 | 0.001 | 2 | 5 | 10 |
