Thông tin sản phẩm

Plate type trolley fixing function
Suitable mounting height (mm): 144
Minimum height (mm): 121
Maximum height (mm): 148
Stroke (mm): 27
Mounting base (mm): 120 x 120
Mounting pitch (mm): 85-100x85-100
Dimension from floor surface (mm): 121
Mounting hole diameter (mm): 11
Width(mm):196
Height (mm): 121
Color: Silver
Pad diameter (mm): 80
DOWN height(mm):148
UP height (mm): 121
Suitable wheel diameter (mm): 100
Recommended wheel diameter (mm): 100
Diameter(mm):80

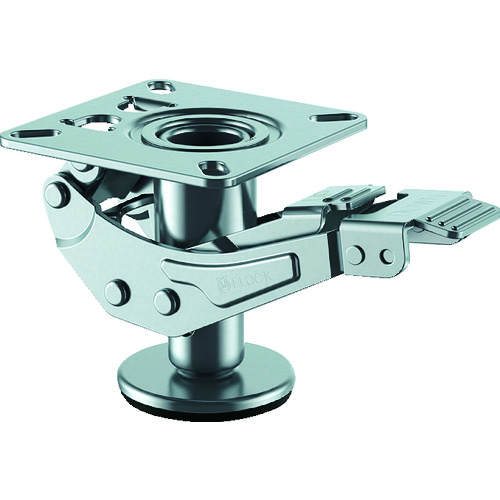

YUEI APT100LOCK

YUEI Việt Nam | YUEI YUEI LOCK APT type Installation dimensions 100 x 100 (85 x 85) MW1950673

Thương hiệu: YUEI
Còn hàng
Liên hệ
Đặc tính
  • The trolley can be secured in place with a simple one-touch pedal operation.
Ứng dụng
  • The built-in spring presses against the floor surface and locks it in place.
  • The built-in spring presses against the floor surface and locks it in place.
Xem thêm

Thông tin sản phẩm

Plate type trolley fixing function
Suitable mounting height (mm): 144
Minimum height (mm): 121
Maximum height (mm): 148
Stroke (mm): 27
Mounting base (mm): 120 x 120
Mounting pitch (mm): 85-100x85-100
Dimension from floor surface (mm): 121
Mounting hole diameter (mm): 11
Width(mm):196
Height (mm): 121
Color: Silver
Pad diameter (mm): 80
DOWN height(mm):148
UP height (mm): 121
Suitable wheel diameter (mm): 100
Recommended wheel diameter (mm): 100
Diameter(mm):80

YUEI APT100LOCK
