- The trolley can be secured in place with a simple one-touch pedal operation.
- The built-in spring presses against the floor surface and locks it in place.
- The built-in spring presses against the floor surface and locks it in place.
Specifications in detail
Plate type trolley fixing function
Suitable mounting height (mm): 250
Minimum height (mm): 207
Maximum height (mm): 256
Stroke (mm): 49
Mounting base (mm): 120 x 120
Mounting pitch (mm): 85-100 x 85-100
Dimensions from floor surface (mm): 207
Mounting hole diameter (mm): 11
Width(mm):195
Height (mm): 207
Pad diameter (mm): 80
DOWN height(mm):256
UP height (mm): 207
Suitable wheel diameter (mm): 200
Recommended wheel diameter (mm): 200
Diameter(mm):80

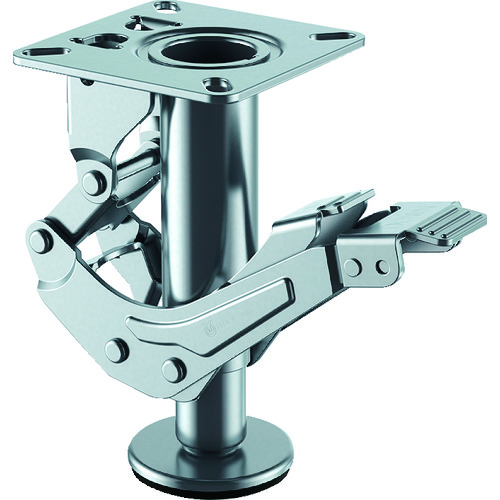

YUEI APT200LOCK
