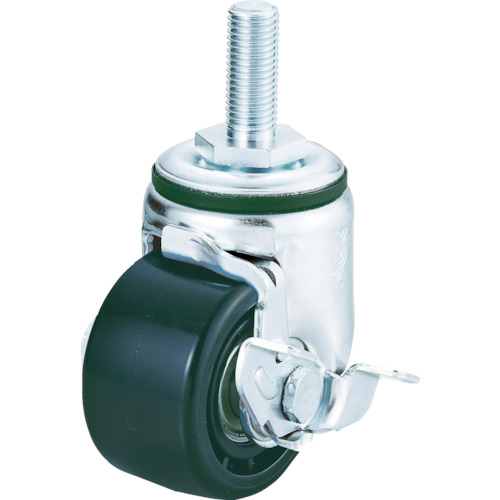

YUEI Việt Nam | YUEI Screw-in type Swivel Low-floor Caster Reinforced nylon Wheel diameter 75mm With stopper H type HT-S type Screw size M16 x 40 pitch 2 MW4820045

YUEI Việt Nam | YUEI Screw-in type Swivel Low-floor Caster Reinforced nylon Wheel diameter 75mm With stopper H type HT-S type Screw size M16 x 40 pitch 2 MW4820045

Thông tin sản phẩm

Screw-in type
Swivel type (with stopper)
Bearings included
Wheel diameter D(mm): 75
Type: Swivel (with stopper)
Allowable load (daN): 160
Allowable load (kgf): 163
Wheel width(mm):38
Mounting height H(mm): 107
Shaft length L(mm): 40
Thread T: M16
Thread pitch(mm): 2

YUEI HT-75GNBS-M16-40

YUEI Việt Nam | YUEI Screw-in type Swivel Low-floor Caster Reinforced nylon Wheel diameter 75mm With stopper H type HT-S type Screw size M16 x 40 pitch 2 MW4820045

Thương hiệu: YUEI

Liên hệ

Đặc tính

A heavy-duty caster with a low mounting height.
The wheels are less likely to become deformed due to long-term heavy loads caused by installing equipment, etc.

Ứng dụng

Ideal for transporting and installing machinery and equipment.
