Features
- It is small and lightweight, making it extremely easy to use.
- Designed for use with mounted grinding wheels, this is a tough tool with strong motor torque.
- For use with mounted grinding stones.
Applications
- Mold finishing, deburring, chamfering, etc.
Specifications in detail
Air pressure used: 0.4 to 0.6 MPa
Tool tip: Shaft diameter 6 mm (grinding wheel)
Exhaust direction: forward
3 mm Collet chuck bush (sold separately)
Shaft-mounted grinding wheel type
Chuck inner diameter (mm): 6
No-load rotation speed (min-1): 20000
Air consumption ((m3)/min): 0.45
Hose attachment port: Rc1/4
Exhaust: forward
Total length (mm): 173
No-load rotation speed (rpm): 20000

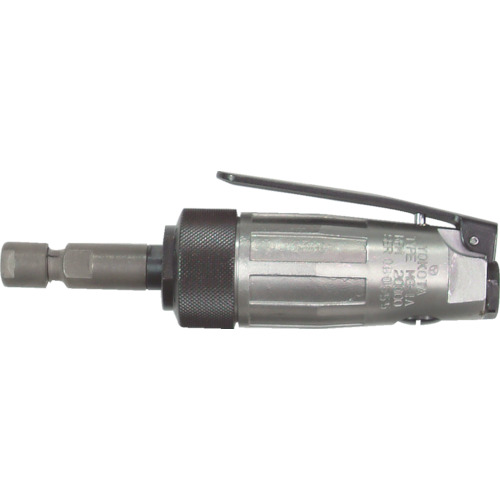

YOKOTA MG-1A
