Features
- It is equipped with a "dual circuit" that determines whether the installed battery is 18V or 14.4V and controls the tool to use with the optimal current and voltage.
- Dustproof and waterproof, passed the IP56 international standard test.
- It has a compact 117.8mm head and a luxurious carbon-look finish.
Note
- Battery pack, charger and case are sold separately.
Specifications in detail
Tightening capacity: Wood screws φ3.5 to φ9.5, texturs φ3.5 to φ6, bolts M6 to M16
Strong, medium, weak impact force switching
Texturizing mode with
brake
LED light
Brushless motor
Chuck: One-touch bit lock system (dimension up to step is 13 mm), bit diagonal 6.35 mm
Maximum tightening torque (N・m): 160 (with 18V battery installed) / 155 (with 14.4V battery installed)
No-load speed (min(-1)) Strong: 0 to 2500
No-load speed (min( No-load speed (min (-1)) Medium: 0-1450 No-load speed (
No-load speed (min( No-load speed (min
(-1)) Medium: 0-1450 No-load speed (
min(-1)) Weak: 0-950
Strokes (min(-1)) Strong: 0-3100
Strokes (min(-1)) Medium: 0-2900 Strokes
(min(-1)) Weak: 0-1900
Color: Black
No-load speed (min(-1)) Texture mode: 0-2500
Strokes (min(-1)) Texture mode: 0-1200
Total length x height x width (mm): 117.8 x 216 x 66
Estimated continuous work volume (1 charge)

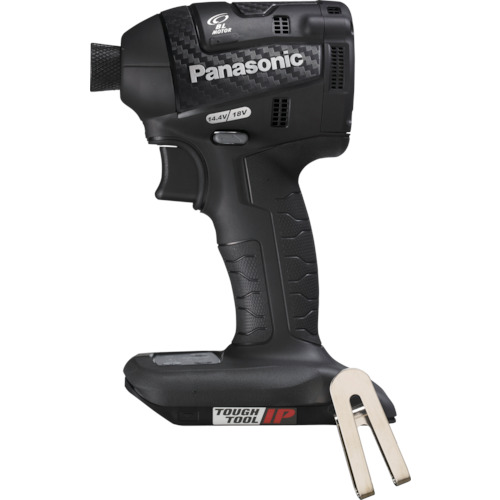

PANASONIC EZ75A7X-B
