Features
- The range of uses is endless thanks to the availability of custom made blades.
- This makes it safer, more efficient and reduces fatigue.
Applications
- For cutting and crimping resin and metal.
Specifications in detail
Cutting capacity (mm) Iron wire: 4.5
Cutting capacity (mm) Copper wire: 5.5
Pressure (N): 4704
Air consumption ((cm3)/time): 1170
Air pressure used (MPa) Total: 0.5-0.6
Total length (mm): 237
Air pressure used (MPa): 0.5-0.6
Cutting capacity (mm) Piano wire: 1.6
Bare terminal: Connector 8mm2
Frame angle (mm): 75

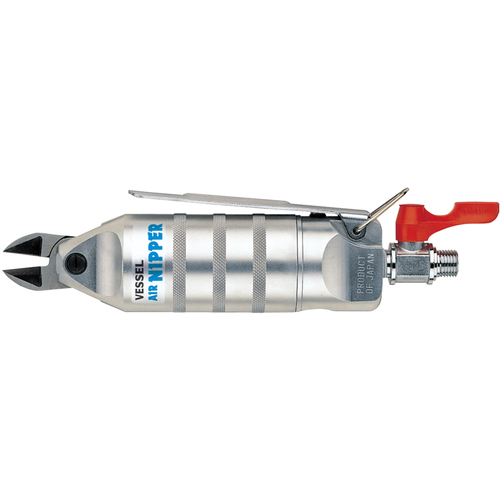

VESSEL GT-N50
