Features
- The range of uses is endless thanks to the availability of custom made blades.
- This makes it safer, more efficient and reduces fatigue.
Applications
- For cutting and crimping resin and metal.
Specifications in detail
Cutting capacity (mm) Iron wire: 2.0
Cutting capacity (mm) Copper wire: 2.6
Cutting capacity (mm) Soft resin: 7.0
Cutting capacity (mm) Hard resin: 5.0
Pressure (N): 1372
Air consumption ((cm3)/time): 230
Air pressure (MPa) Total: 0.5-0.6
Replacement blade for iron and copper: N20AS, N20HS, N20AG, N20BFB
Replacement blade for resin: N20AP, N20AJ, N20AJL, N20AJB, N20PF, N20AE, N20AH, N20AML1498, NM20AJ, NM20AP, NM20AE
Total length (mm): 148
Air pressure (MPa): 0.5-0.6
Cutting capacity (mm) Piano wire: 1.0
Frame angle (mm): 45

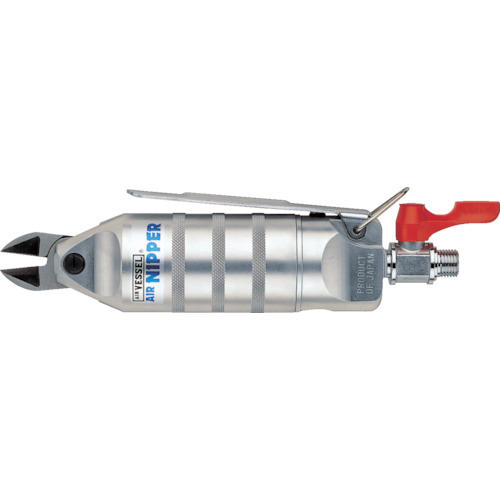

VESSEL GT-N20
