| Mã đặt hàng | Kích thước DxWxH | Khối lượng |
| mm | kg | |
| 465285.0100 | 565 x 412 x 105 | 14,4 |

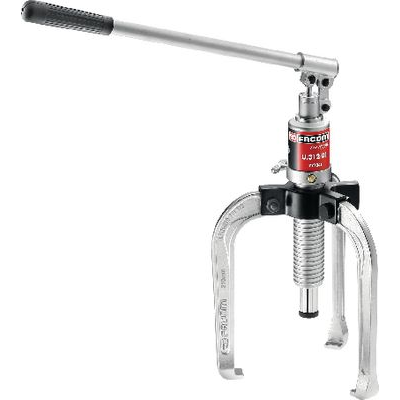

FACOM U.312HJ4 hydraulic puller set, 10 tons, with 4 sets of external pulling legs. Can be assembled with 2 or 3 pulling legs. Power is hydraulically limited to 10 t (no risk of tool breakage). Supplied in a plastic case.
Contents:
U.312-01: 1 hydraulic cylinder, 10 t (100 kN)
U.312-02: Guide tip
U.312-03: Set of 2 extensions
U.312-04: 1 body for 2 or 3 pulling legs
U.312-04-01: Centring screw
U.312-04-02: Set of 3 screws/nuts
4 sets of external pulling legs:
- U.312G110 (clamping width 45–85 mm/clamping depth 110 mm)
- U.312G160 (clamping width 80–170 mm/clamping depth 160 mm)
- U.312G210 (clamping width 90–210 mm/clamping depth 210 mm)
- U.312G260 (clamping width 110–270 mm/clamping depth 260 mm)
Dowload catalog
