| Mã đặt hàng | 130022.0100 | 130022.0200 | 130022.0300 | 130022.0400 | 130022.0500 | |
| Kiểu | G | G | G | G | G | |
| Dải đo | mm | 2.5...12.5 | 5...15 | 10...30 | 20...40 | 30...50 |
| Chiều sâu ngàm đo | mm | 12 | 35 | 85 | 85 | 85 |
| Độ phân giải | mm | 0.005 | 0.005 | 0.01 | 0.01 | 0.01 |
| Độ chính xác | mm | 0.015 | 0.015 | 0.03 | 0.03 | 0.03 |
Repeatability |
mm | 0.005 | 0.005 | 0.01 | 0.01 | 0.01 |
| Áp lực đo | N | 0.8...1.2 | 0.8...1.2 | 1.1...1.6 | 1.1...1.6 | 1.1...1.6 |
| Đường kính đầu tiếp xúc | SR0.1 | KØ0.6 | SØ1 | KØ1 | KØ1 | |
| Tiêu chuẩn | IP67 | IP67 | IP67 | IP67 | IP67 |
130022 Quicktest gauge digital KROEPLIN

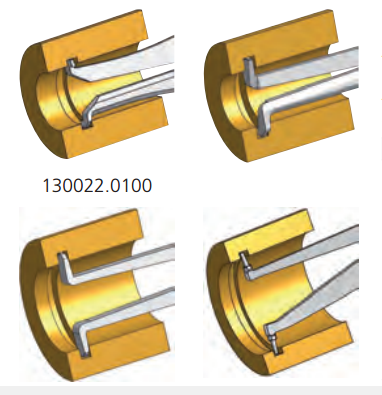

For measuring internal grooves and recesses. The Digimatic or USB data output can be added as an option using 130030.
Features:
Combined LCD display (digital/analogue)
Red/green LED display for tolerance measurements
Absolute/relative measuring mode
mm/inch conversion
Package contents:
Delivered in transport packaging incl. factory certifiate.
Appropriate accessories:
130030 Accessories KROEPLIN
Appropriate batteries:
2 pieces 155050.0400 - LR03 / 1.5 V (AAA) (included in scope of delivery).
