| Mã đặt hàng | Model | Dải đo | Chiều cao | Độ phân giải | Độ chính xác | Độ lặp | Độ vuông | Lực đo | Khối lượng |
| mm | mm | mm | mm | µm | µm | µm | N | ||
| 136589.0340 | V3 | 407 | 508 | 0.001 | 7 | 2 | 10 | 0.75...1.5 | 21 |
| 136589.0370 | V3 | 711 | 812 | 0.001 | 8 | 2 | 15 | 0.75...1.5 | 24 |
| 136589.0440 | V4 | 407 | 719 | 0.001 | 5 | 2 | 10 | 0.75...1.5 | 21 |
| 136589.0470 | V4 | 711 | 1023 | 0.001 | 7 | 2 | 15 | 0.75...1.5 | 24 |
| 136589.1000 | V5 | 407 | 719 | 0.001 | (2.5+L(mm)/300) | 2 | 5 | 0.75...1.5 | 21 |
| 136589.1050 | V5 | 711 | 1023 | 0.001 | (2.5+L(mm)/300) | 2 | 8 | 0.75...1.5 | 24 |
| 136589.1100 | V5 | 1110 | 1422 | 0.001 | (2.5+L(mm)/300) | 2 | 11 | 0.75...1.5 | 30 |
| 136589.1200 | V6 | 407 | 719 | 0.0001 | (2+L(mm)/400) | 1 | 5 | 0.75...1.5 | 21 |
| 136589.1250 | V6 | 711 | 1023 | 0.0001 | (2+L(mm)/400) | 1 | 8 | 0.75...1.5 | 24 |
| 136589.1300 | V6 | 1110 | 1422 | 0.0001 | (2+L(mm)/400) | 1 | 11 | 0.75...1.5 | 30 |

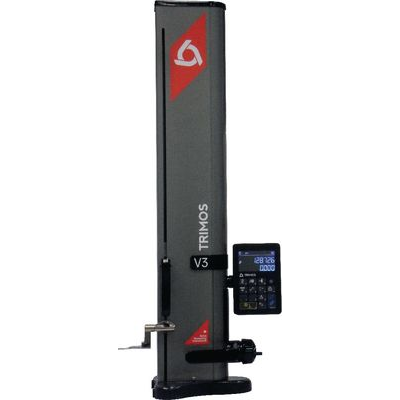

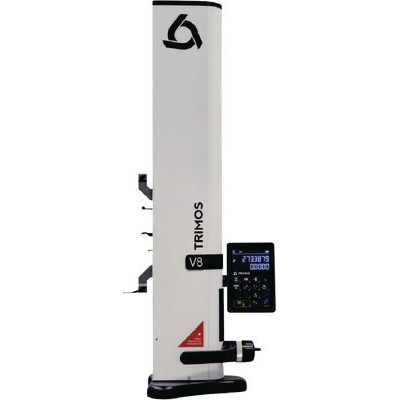

136589 Height measuring instrument TRIMOS V
Swiss Made - 3-year guarantee. Shop-suitable measuring instrument with large and very readable LCD display with 2 rows presentation. Ideal for simple and reliable measurement of heights, depths and distances as well as inside and outside diameters.
Designs:
Model V3 man., without air pad displacement
Model V4 man., with air pad displacement
Model V5 man. / mot., with air pad displacement
Model V6 man. / mot., with air pad displacement
Features:
mm / inch conversion
Min/max/delta function
Measurement with 2 reference points
PRESET function
Saving of probe constant
Adjustable measuring pressure
Data output RS-232 and USB
Appropriate for probes up to 330 mm
Note:
We provide you with optional installation, activation, training, calibration and servicing on site for
this measuring instrument.
Package contents:
Delivered in transport packaging incl.:
Probe with ruby ball Ø 4 mm
Setting gauge
Charger
Manual short / Manual
Factory certificate
Appropriate accessories:
136600 Accessories TRIMOS
