| Mã đặt hàng | 136571.0100 | 136571.0100 | 136571.0100 |
|---|---|---|---|
| Dải đo (mm) | 150 | 300 | 450 |
| Chiều cao (mm) | 155 | 320 | 470 |
| Độ phân giải (mm) | 0.01 / 0.001 | 0.01 / 0.001 | 0.01 / 0.001 |
| Độ chính xác (µm) | 2.5+L(mm)/175 | 2.5+L(mm)/175 | 2.5+L(mm)/175 |
| Độ lặp (µm) | 2 | 2 | 2 |
| Lực đo (N) | 0.2...0.3 | 0.2...0.3 | 0.2...0.3 |
| Khối lượng (kg) | 3.9 | 4.6 | 6.8 |

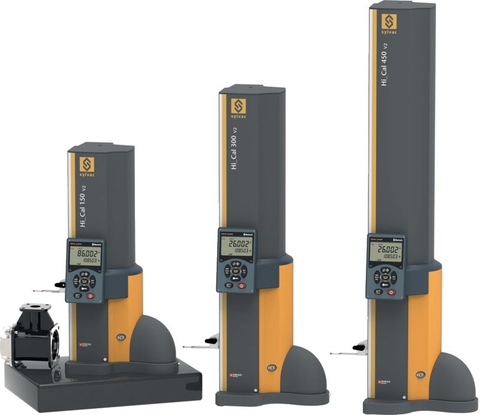

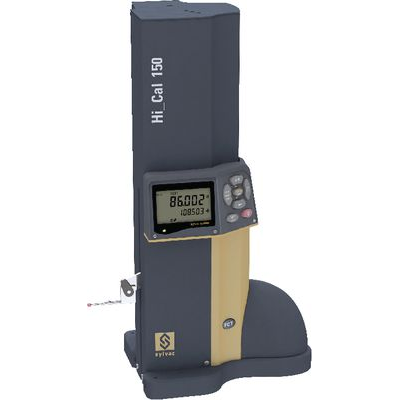

136571 Height measuring instrument SYLVAC Hi_Cal
Swiss Made - 3-year guarantee.Specially suited to small workpieces in the workshop and production. The motorised touch system provides quick and accurate measurement of internal and
external diameters, axis-centre distances, recesses, heights, thicknesses and distances from surfaces
to axes.
Features:
Zero setting / PRESET function
Conversion mm/inch
Min / Max / Delta display
2 references
Multifunction button programmable
Data output USB, RS-232
Package contents:
Delivered in transport packaging incl.:
Contact point with ruby ball tip Ø 3 mm
Setting gauge
Power adapter (charger)
Protective hood
Factory certificate
Appropriate accessories:
136600 Accessories SYLVAC
