| Mã đặt hàng | Dải đo | Độ phân giải | Độ chính xác | Tiêu chuẩn | Chiều cao số |
| mm | mm | µm | mm | ||
| 119530.0101 | 2...6 | 0.001 | 4 | IP67 | 6 |
| 119530.0201 | 6...10 | 0.001 | 4 | IP67 | 6 |
| 119530.0301 | 10...20 | 0.001 | 4 | IP67 | 6 |
| 119530.0401 | 20...50 | 0.001 | 4 | IP67 | 6 |
| 119530.0501 | 50...100 | 0.001 | 5 | IP67 | 6 |
| 119530.0601 | 100...150 | 0.001 | 6 | IP 67 | 6 |
| 119530.0701 | 150...200 | 0.001 | 7 | IP 67 | 6 |
| 119530.0801 | 6...20 | 0.001 | 4 | IP67 | 6 |
| 119530.0901 | 20...100 | 0.001 | 5 | IP67 | 6 |
| 119530.1001 | 100...200 | 0.001 | 7 | IP 67 | 6 |

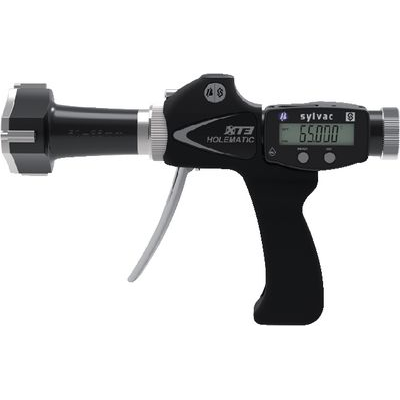

119530 Measuring pistol set SYLVAC, IP67
3-year guarantee. Xtreme 3 - Equipped with interchangeable measuring heads for the toughest working conditions. Oil mist, coolants and casting dust have no effect on the measurement. The measuring element with pistol grip makes quick centring possible when measuring through-holes and also base boreholes (from Ø 12.5 mm). The measuring inserts are hardened, ground and carbide-coated from Ø 10 mm.
Features:
LCD display
SET (sets display to zero)
Max/min function
REF (Reference)
HOLD (freeze the display)
TOL (tolerance input)
Conversion mm/inch
Data output Proximity
Package contents:
Delivered in case incl. measuring element, measuring heads and ring gauges with UKAS certificate.
Appropriate batteries:
1 pieces 155051.0545 - CR2032 / 3.0 V (included in scope of delivery).
| Mã đặt hàng | Dải đo | Độ phân giải | Độ chính xác | Tiêu chuẩn | Chiều cao số |
| mm | mm | µm | mm | ||
| 119530.0101 | 2...6 | 0.001 | 4 | IP67 | 6 |
| 119530.0201 | 6...10 | 0.001 | 4 | IP67 | 6 |
| 119530.0301 | 10...20 | 0.001 | 4 | IP67 | 6 |
| 119530.0401 | 20...50 | 0.001 | 4 | IP67 | 6 |
| 119530.0501 | 50...100 | 0.001 | 5 | IP67 | 6 |
| 119530.0601 | 100...150 | 0.001 | 6 | IP 67 | 6 |
| 119530.0701 | 150...200 | 0.001 | 7 | IP 67 | 6 |
| 119530.0801 | 6...20 | 0.001 | 4 | IP67 | 6 |
| 119530.0901 | 20...100 | 0.001 | 5 | IP67 | 6 |
| 119530.1001 | 100...200 | 0.001 | 7 | IP 67 | 6 |
119530 Measuring pistol set SYLVAC, IP67
3-year guarantee. Xtreme 3 - Equipped with interchangeable measuring heads for the toughest working conditions. Oil mist, coolants and casting dust have no effect on the measurement. The measuring element with pistol grip makes quick centring possible when measuring through-holes and also base boreholes (from Ø 12.5 mm). The measuring inserts are hardened, ground and carbide-coated from Ø 10 mm.
Features:
LCD display
SET (sets display to zero)
Max/min function
REF (Reference)
HOLD (freeze the display)
TOL (tolerance input)
Conversion mm/inch
Data output Proximity
Package contents:
Delivered in case incl. measuring element, measuring heads and ring gauges with UKAS certificate.
Appropriate batteries:
1 pieces 155051.0545 - CR2032 / 3.0 V (included in scope of delivery).
