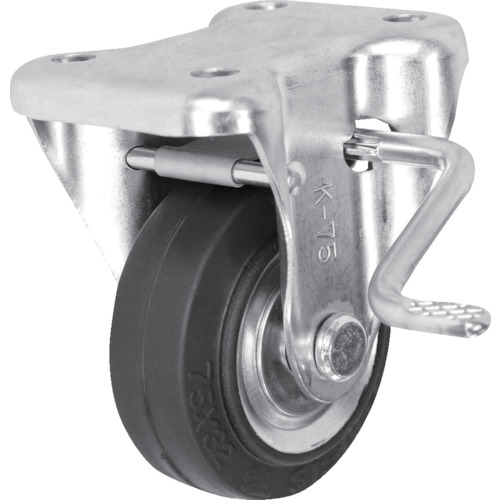

- This is the SISIKU standard press caster, featuring SISIKU's unique box-style wheels, which are known for their strength.
- High elasticity rubber wheels.
- For various transport carts
Specifications in detail
Plate Type
Press bearing included
Fixed type (with stopper)
Also available with left side stopper (except Φ75)
Wheel diameter D(mm): 75
Type: Fixed type (with stopper)
Allowable load (daN): 78
Allowable load (kgf): 80
Wheel width(mm):32
Mounting height H(mm): 103
Mounting seat A(mm): 91
Mounting seat B(mm): 68
Mounting pitch X(mm): 63
Mounting pitch Y(mm): 40
Mounting hole diameter P(mm): 9.5
SISIKU WKB-75
