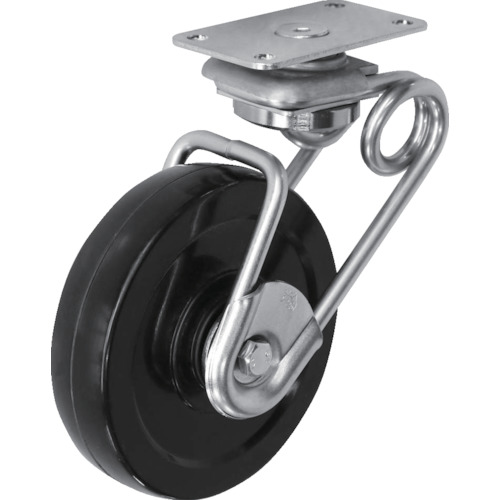

- It's a unique style, with the forks themselves acting as springs.
- The use of torsion springs reduces shock and vibration from all directions and also reduces noise generation.
- By providing cushioning, the rotating and wheel parts are put under less strain and last longer.
- This product has been patented (No. 4579285).
- It won the Good Design Award in 2010 and the iF Design Award in 2012.
- For welfare and medical equipment
- For light transport
- Various design wagons
Specifications in detail
Free-standing
Wheel diameter D(mm): 100
Type: Free-standing
Load setting (daN): 49
Load setting (kgf): 50
Wheel width(mm):25
Mounting height H(mm): 137-125
Mounting seat A(mm): 70
Mounting seat B(mm): 43
Mounting pitch X(mm): 56
Mounting pitch Y(mm): 28
Mounting hole diameter P(mm): 6.3
Buffer load (kg): up to 40
Maximum load capacity (kg): up to 40
SISIKU SAJ-TS6-100R
