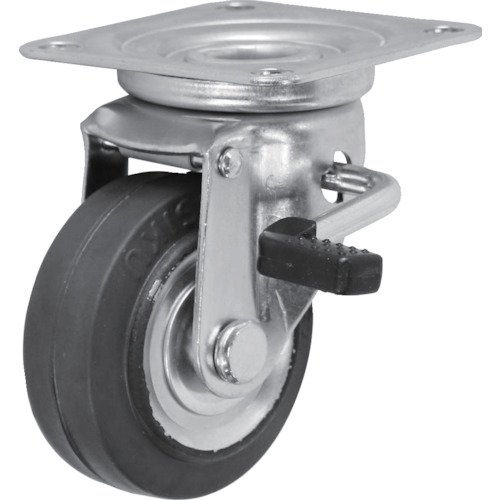

- This is the SISIKU standard press caster, featuring SISIKU's unique box-style wheels, which are known for their strength.
- High elasticity rubber wheels.
- For various transport carts
Specifications in detail
Plate Type
Press bearing included
Swivel type (with double stopper)
Locks the swivel and wheels simultaneously
Also available with left side stopper (except Φ75, Φ250)
Wheel diameter D(mm): 75
Type: Swivel (with double stopper)
Allowable load (daN): 78
Allowable load (kgf): 80
Wheel width(mm):32
Mounting height H(mm): 103
Mounting seat A(mm): 82
Mounting seat B(mm): 82
Mounting pitch X(mm): 63
Mounting pitch Y(mm): 63
Mounting hole diameter P(mm): 9.5
Allowable load (N): 785
SISIKU WJB-75
