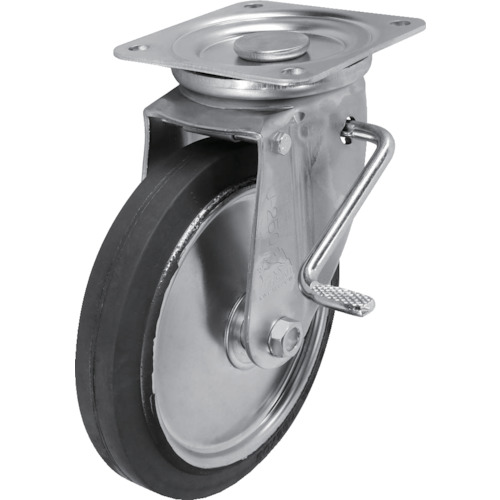

Plate Type
Press bearing included
Swivel type (with double stopper)
Locks the swivel and wheels simultaneously
Also available with left side stopper (except Φ75, Φ250)
Wheel diameter D(mm): 250
Type: Swivel (with double stopper)
Allowable load (daN): 323
Allowable load (kgf): 330
Wheel width(mm):50
Mounting height H(mm): 305
Mounting seat A(mm): 160
Mounting base B(mm): 160
Mounting pitch X(mm): 125
Mounting pitch Y(mm): 125
Mounting hole diameter P(mm): 14
Allowable load (N): 3236
SISIKU WJB-250
