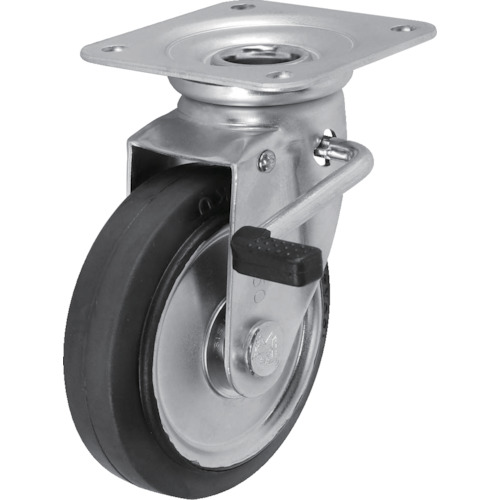

Plate Type
Press bearing included
Swivel type (with double stopper)
Locks the swivel and wheels simultaneously
Also available with left side stopper (except Φ75, Φ250)
Wheel diameter D(mm): 150
Type: Swivel (with double stopper)
Allowable load (daN): 196
Allowable load (kgf): 200
Wheel width(mm): 45
Mounting height H(mm): 198
Mounting seat A(mm): 120
Mounting base B(mm): 120
Mounting pitch X(mm): 90
Mounting pitch Y(mm): 90
Mounting hole diameter P(mm): 11.5
Allowable load (N): 1961
SISIKU WJB-150
