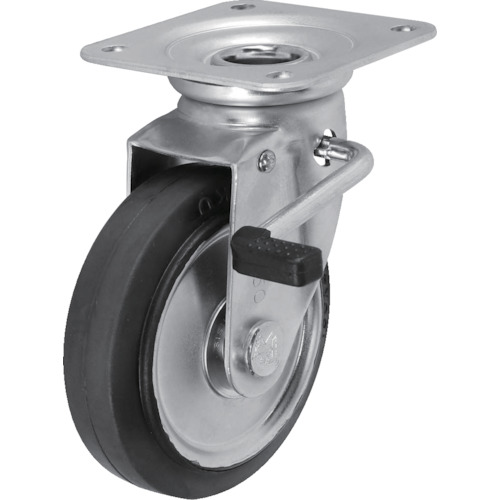

Plate Type
Press bearing included
Swivel type (with double stopper)
Locks the swivel and wheels simultaneously
Also available with left side stopper (except Φ75, Φ250)
Wheel diameter D(mm): 130
Type: Swivel (with double stopper)
Allowable load (daN): 176
Allowable load (kgf): 180
Wheel width(mm):42
Mounting height H(mm): 177
Mounting seat A(mm): 108
Mounting base B(mm): 108
Mounting pitch X(mm): 80
Mounting pitch Y(mm): 80
Mounting hole diameter P(mm): 11.5
Allowable load (N): 1765
SISIKU WJB-130
