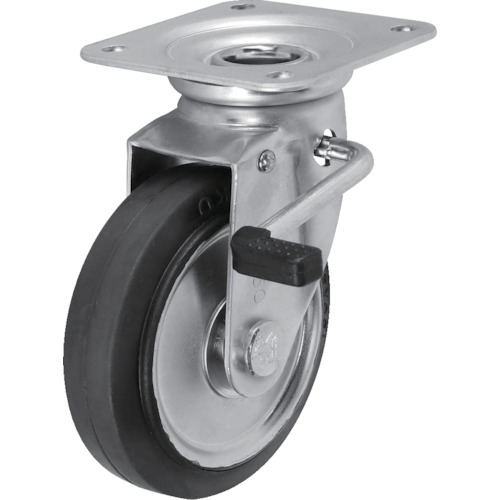

Plate Type
Press bearing included
Swivel type (with double stopper)
Locks the swivel and wheels simultaneously
Also available with left side stopper (except Φ75, Φ250)
Wheel diameter D(mm): 100
Type: Swivel (with double stopper)
Allowable load (daN): 127
Allowable load (kgf): 130
Wheel width(mm):35
Mounting height H(mm): 144
Mounting seat A(mm): 95
Mounting base B(mm): 95
Mounting pitch X(mm): 71
Mounting pitch Y(mm):71
Mounting hole diameter P(mm): 11
Allowable load (N): 1275
SISIKU WJB-100
