- Stainless steel (SUS304) is used for the core, rotating part, and bearings.
- The swivel section is equipped with a smooth-moving double-layer bearing with a dust cover.
- Transportation of electronic components and precision measuring equipment
Specifications in detail
Plate Type
Stainless steel needle bearings included (wheel diameter 200mm includes stainless steel collar)

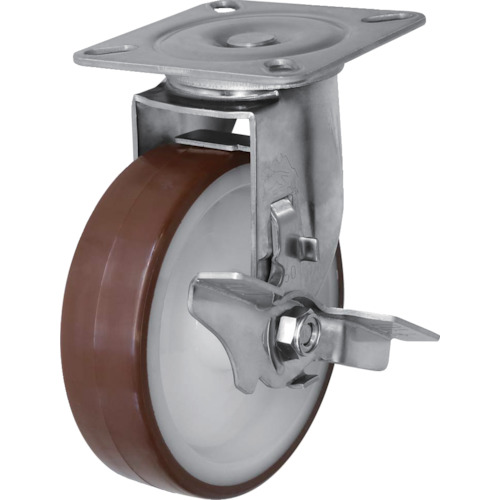

Swivel type (with stopper)
Stainless steel needle bearing included
Wheel diameter D(mm): 100
Type: Swivel (with stopper)
Allowable load (daN): 147
Allowable load (kgf): 150
Wheel width(mm):35
Mounting height H(mm): 130
Mounting seat A(mm): 90
Mounting base B(mm): 90
Mounting pitch X(mm): 68-71
Mounting pitch Y(mm): 68-71
Mounting hole diameter P(mm): 11
SISIKU SUNJB-100-POTH
