- Stainless steel (SUS304) is used for the core, rotating part, and bearings.
- The swivel section is equipped with a smooth-moving double-layer bearing with a dust cover.
- Transportation of electronic components and precision measuring equipment
Specifications in detail
Plate Type
Stainless steel needle bearings included (wheel diameter 200mm includes stainless steel collar)
Fixed
Stainless steel needle bearing included
Wheel diameter D(mm): 125
Type: Fixed
Allowable load (daN): 205
Allowable load (kgf): 210
Wheel width(mm):35
Mounting height H(mm): 165
Mounting seat A(mm): 140
Mounting base B(mm): 85
Mounting pitch X(mm): 100-112
Mounting pitch Y(mm): 56-53
Mounting hole diameter P(mm): 11

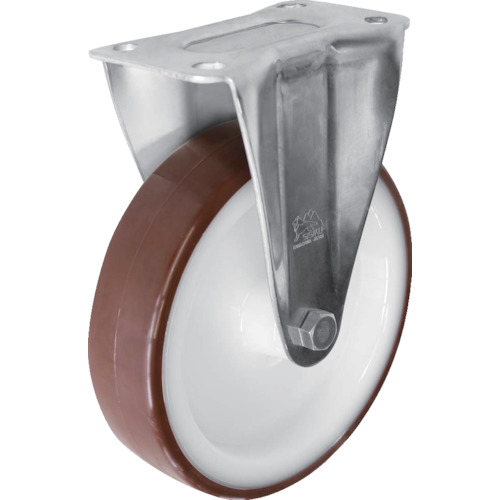

SISIKU SUNK-125-POTH
