| Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| 258270.0100 | 5 | 50 | 110 | 258270.1400 | 7 | 100 | 165 | 258270.2700 | 10 | 400 | 465 |
| 258270.0200 | 5 | 100 | 160 | 258270.1500 | 7 | 150 | 215 | 258270.2800 | 12 | 100 | 165 |
| 258270.0300 | 5 | 150 | 210 | 258270.1600 | 8 | 50 | 115 | 258270.2900 | 12 | 150 | 215 |
| 258270.0400 | 5.5 | 50 | 110 | 258270.1700 | 8 | 100 | 165 | 258270.3000 | 12 | 200 | 265 |
| 258270.0500 | 5.5 | 100 | 160 | 258270.1800 | 8 | 150 | 215 | 258270.3100 | 12 | 300 | 365 |
| 258270.0600 | 6 | 50 | 115 | 258270.1900 | 8 | 200 | 265 | 258270.3200 | 12 | 400 | 465 |
| 258270.0700 | 6 | 100 | 165 | 258270.2000 | 8 | 300 | 365 | 258270.3300 | 14 | 100 | 165 |
| 258270.0800 | 6 | 150 | 215 | 258270.2100 | 8 | 400 | 465 | 258270.3400 | 14 | 150 | 215 |
| 258270.0900 | 6 | 200 | 265 | 258270.2200 | 10 | 50 | 115 | 258270.3500 | 14 | 200 | 265 |
| 258270.1000 | 6.5 | 50 | 115 | 258270.2300 | 10 | 100 | 165 | 258270.3600 | 14 | 300 | 365 |
| 258270.1100 | 6.5 | 100 | 165 | 258270.2400 | 10 | 150 | 215 | 258270.3700 | 14 | 400 | 465 |
| 258270.1200 | 6.5 | 200 | 265 | 258270.2500 | 10 | 200 | 265 | ||||
| 258270.1300 | 7 | 50 | 115 | 258270.2600 | 10 | 300 | 365 |

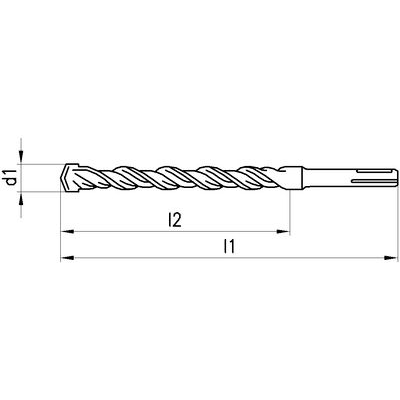

258270 - SDS-plus-7 drills BOSCH
N Stone
Mounting shank SDS-plus, full solid carbide head and four-cutter geometry.
For extremely long life and constantly high drilling speed.
Is part of:
258271 Hammer drill set X5L SDS-Plus BOSCH
