Mã đặt hàng | Bề dày | Dung sai | Mã đặt hàng | Bề dày | Dung sai |
mm | mm | mm | mm | ||
162905.0200 | 0.01 | ±0.002 | 162905.1000 | 0.40 | ±0.009 |
162905.0300 | 0.02 | ±0.002 | 162905.1100 | 0.50 | ±0.010 |
162905.0400 | 0.05 | ±0.003 | 162905.1200 | 0.60 | ±0.010 |
162905.0500 | 0.10 | ±0.004 | 162905.1300 | 0.70 | ±0.012 |
162905.0600 | 0.15 | ±0.005 | 162905.1400 | 0.80 | ±0.013 |
162905.0700 | 0.20 | ±0.006 | 162905.1500 | 0.90 | ±0.013 |
162905.0800 | 0.25 | ±0.007 | 162905.1600 | 1.00 | ±0.017 |
162905.0900 | 0.30 | ±0.007 |
Stainless spring steel 1.4310 / length 5 m x width 25 mm

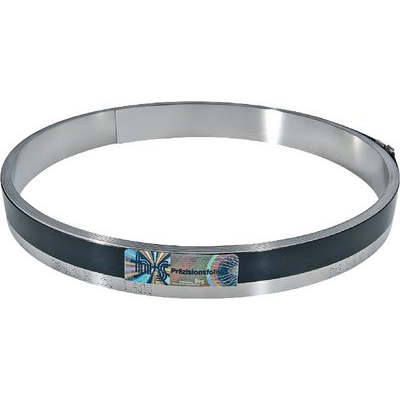

162905 Precision feeler gauge tape H+S
Version with progressively labelled thickness (therefore no mix-ups). Perfect for feeler gauges used
for alignments and adjustmentsduring production, and assembling machine components.
Note:
Factory certificate on request.
Package contents:
Thickness ≤ 0.3 mm, supplied in plastic packaging

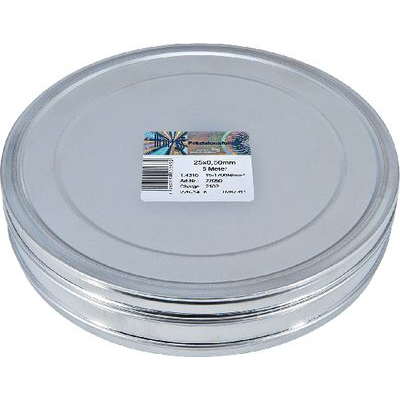

Thickness ≥ 0.4 mm ≤ 0.8 mm, supplied in metal box
Thickness ≥ 0.9 mm, supplied without protective packaging
Mã đặt hàng | Bề dày | Dung sai | Mã đặt hàng | Bề dày | Dung sai |
mm | mm | mm | mm | ||
162905.0200 | 0.01 | ±0.002 | 162905.1000 | 0.40 | ±0.009 |
162905.0300 | 0.02 | ±0.002 | 162905.1100 | 0.50 | ±0.010 |
162905.0400 | 0.05 | ±0.003 | 162905.1200 | 0.60 | ±0.010 |
162905.0500 | 0.10 | ±0.004 | 162905.1300 | 0.70 | ±0.012 |
162905.0600 | 0.15 | ±0.005 | 162905.1400 | 0.80 | ±0.013 |
162905.0700 | 0.20 | ±0.006 | 162905.1500 | 0.90 | ±0.013 |
162905.0800 | 0.25 | ±0.007 | 162905.1600 | 1.00 | ±0.017 |
162905.0900 | 0.30 | ±0.007 |
Stainless spring steel 1.4310 / length 5 m x width 25 mm
162905 Precision feeler gauge tape H+S
Version with progressively labelled thickness (therefore no mix-ups). Perfect for feeler gauges used
for alignments and adjustmentsduring production, and assembling machine components.
Note:
Factory certificate on request.
Package contents:
Thickness ≤ 0.3 mm, supplied in plastic packaging
Thickness ≥ 0.4 mm ≤ 0.8 mm, supplied in metal box
Thickness ≥ 0.9 mm, supplied without protective packaging
