Features
- The soft setting makes it ideal for thin plates and soft base materials.
- The tip is tapered, making it easy to insert into pilot holes and ideal for automatic drilling.
- The knurling on the body of the tool grips the base material firmly, making it difficult for it to rotate (however, this depends on the conditions).
- It comes in small packs so you can buy just the amount you need, when you need it.
- The knurling on the body acts as a guide for forming the crimping rib, making installation easy.
- Comes in a sturdy plastic case for easy storage.
Applications
- For attaching parts to steel and plastic parts of a car (bumpers, etc.).
- For attaching parts to aluminum building materials such as exteriors.
- For attaching accessories to thin plates, connecting pipes to flat plates, leveling agricultural tools and equipment, etc.
Specifications in detail

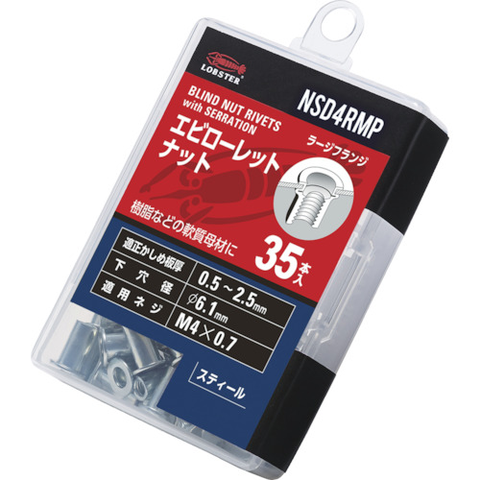

Flat head in pack
Flat
head in pack
Total length (mm): 11.5
Pilot hole diameter (mm): 6.1
Applicable screw: M4 x 0.7
Nut outer diameter (mm): 6.0
Flange thickness (mm): 0.8
Number of pieces in pack: 35
Crimp plate thickness (mm): 0.5 to 2.5
Flange diameter (mm): 9.0
Torque strength (N・m): 5.9
Thread shear strength (kN): 6.7
LOBSTER NSD4RMP
