Features
- The mandrel is discharged in a straight line, making it much easier to use.
- It is now possible to cut stainless steel rivets with a diameter of φ4.8 mm.
- The suction and ejection mechanism holds the rivet even when the tip is facing downwards.
- The stroke has increased from 14mm to 16mm, increasing the number of rivets that can be cut in one go.
Applications
- Tool for fastening blind rivets.
Specifications in detail
Required air pressure: 0.5-0.6MPa
Stroke: 16mm
Air attachment port: G1/4
Overall length (mm): 401
Jaw used: CJM (medium super hard)
Rivet use range (mm): 2.4, 3.2, 4.0, 4.8
Nosepiece used: 2.4, 3.2, 4.0,
4.8mm Rivet diameter use range (mm): 2.4-4.8
Suitable rivet diameter (mm): 2.4, 3.2 , 4.0, 4.8
Required air pressure (MPa): 0.5-0.6
Type: With suction and exhaust device

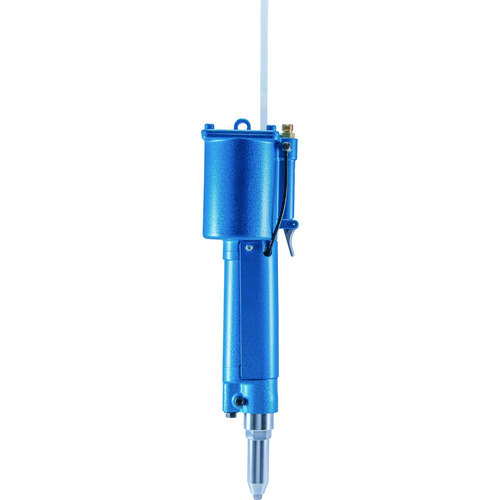

LOBSTER ARV015MX
