- The powerful magnet and sturdy clamping mechanism enable stable and highly accurate measurement work.
- Comes with a fine adjustment mechanism for the measurement position.
- A wide range of models are available, from small to large, with a variety of additional functions, so that you can select the one that best suits the various conditions at the measurement location.
- Used as a measuring instrument holder when measuring with a dial gauge type measuring instrument.
Specifications in detail
Main pillar: φ20×178mm
Support: φ14×165mm
Measuring instrument attachment: 6.6/8.1mm
Adsorption force (N): 1000
Magnet width (mm): 50
Magnet depth (mm): 73
Magnet height (mm): 55
Main column dimensions (mm): 178
Post dimensions (mm): 165
Main column mounting screw: M8 x P1.25
Measuring instrument mounting hole: 6.6/8.1
Length (mm): 73
Height (mm): 55
Depth (mm): 73
Width(mm):50

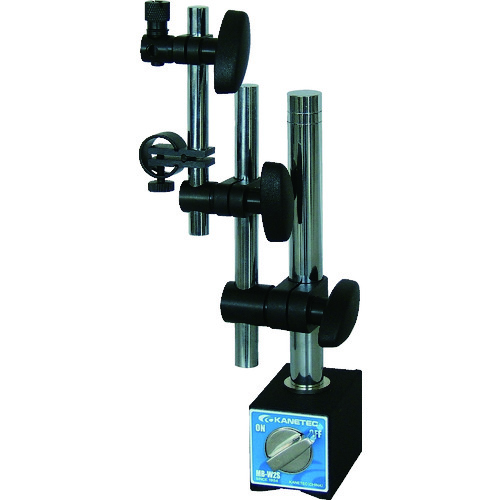

KANETEC MB-W2V
