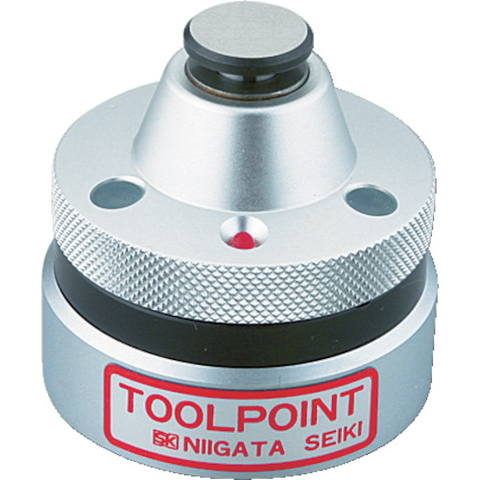

Features
- Ideal for setting the reference position in the Z direction of machine tools.
- It is useful for setting the zero point reference from general tolerances to precision tolerances for general-purpose, NC milling, machining centers, etc.
- Comes with a magnet on the bottom.
Applications
- For high-precision Z-axis positioning.
Specifications in detail
Measurement accuracy (mm): 50 (+0.005)
Repeatability (μm): ±1
Measurement pressure (N): 2.5
Stroke (mm): 3
Magnet attraction force (N): 29
Power supply: LR44x2 (included for testing)
Tool holder (mm): φ16
Total length (mm): 50
Width (mm): 50
Depth (mm): 50
Height (mm): 50
Power supply (V): 2 coin batteries LR-44 (included)
Measurement accuracy (mm): 50 0 to 0.005
Power supply: 2 coin batteries LR-44 (included)
Light sensor: Yes
Bottom magnet: Yes
SK TP-50M
