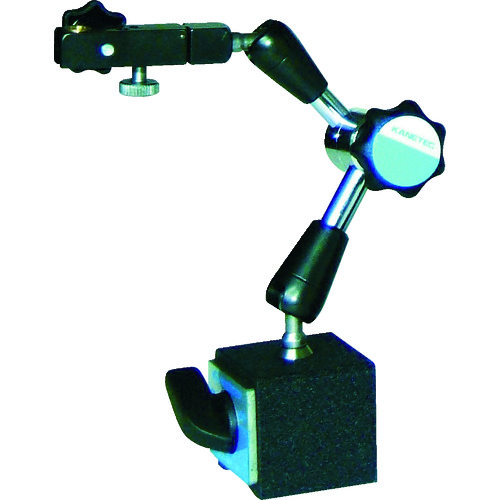

- The powerful magnet and sturdy clamping mechanism enable stable and highly accurate measurement work.
- By tightening a single dial, you can lock everything in a variety of positions at once, providing stable fixation.
- No maintenance required.
- The arm is freely movable and can be locked at any position by tightening the knob.
- Used as a measuring instrument holder when measuring with a dial gauge type measuring instrument.
Specifications in detail
Measuring instrument mounting: 6mm and 8mm holes, with dovetail groove
Adsorption force (N): 600
Magnet width (mm): 40
Magnet depth (mm): 40
Magnet height (mm): 40
Arm mounting screw: M6 x 1
Measuring instrument mounting hole: 6mm, 8mm
KANETEC MB-MX13F
