- The powerful magnet and sturdy clamping mechanism enable stable and highly accurate measurement work.
- Used as a measuring instrument holder when measuring with a dial gauge type measuring instrument.
Specifications in detail
Main pillar: φ12×176mm
Support: φ10×165mm
Measuring instrument mounting: 6.6mm and 8.1mm holes, with lugs
Adsorption force (N): 800
Magnet width (mm): 50
Magnet depth (mm): 58.5
Magnet height (mm): 55
Main column mounting screw: M8 x P1.25

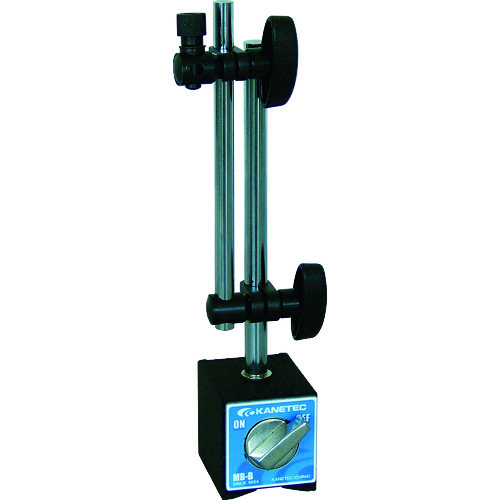

KANETEC MB-B
