- Since one base is equipped with two arms, the base does not take up much space when measuring two points simultaneously.
- There are also mounting holes on the side of the base, making it suitable for a variety of measurements.

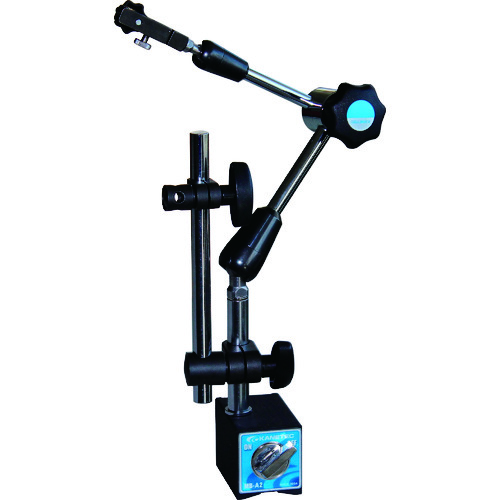

- This product is designed to make measurements and sensor setting easier by equipping one base with two arms with different locking mechanisms.
Specifications in detail
Main pillar: φ16×87mm
Support: φ14×200mm
Measuring instrument mounting (pillar side): 6.6mm and 8.1mm holes, with lugs
Measuring instrument mounting (mechanical lock arm side): 6mm, 8mm holes, with dovetail groove
Adsorption force (N): 1000
Magnet width (mm): 50
Magnet depth (mm): 73
Magnet height (mm): 55
Arm length (mm): 429/200
Arm mounting screw: M8
Measuring instrument mounting hole: 6/8
KANETEC MB-A2
