Thông tin sản phẩm

Features

  • Uses a hollow fiber membrane filter with a filtration accuracy of 0.01 microns.
  • Shuts out water droplets and foreign objects in the piping.
  • This is to support the main filter system.
  • It is useful for in-line use in the middle of hose piping.

Applications

  • For air blowing and air piping in precision machinery, printing, painting, food, optical parts, etc.
Specifications in detail
Fluid temperature: 5 to 50°C
Normal pressure: 0 to 0.8MPa
Membrane area: 80 (cm2)
Filtration accuracy (μm): 0.01
Outer diameter (mm): φ21
Length (mm): 83
Connection diameter: Bamboo shoot (other hose inner diameter Φ7mm)
Compatible fluid: Air

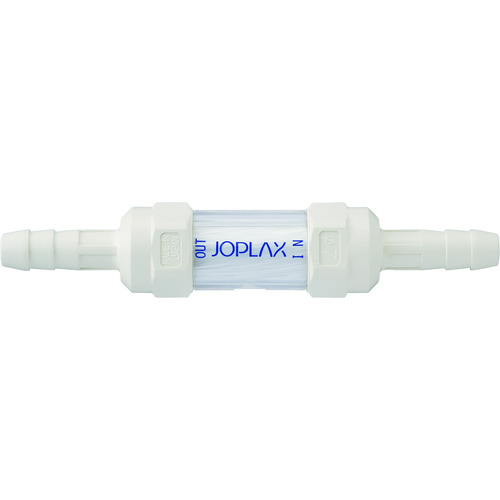

JOPLAX TF-20N-C

JOPLAX Việt Nam | JOPLAX hollow fiber membrane filter (multipurpose) Hollow Fiber Filter MW8354262

Thương hiệu: JOPLAX
Còn hàng
Liên hệ

MADE IN JAPAN

Features: Uses a hollow fiber membrane filter with a filtration accuracy of 0.01 microns.Shuts out water droplets and foreign objects in the piping.This is to support the main filter system.It is useful for in-line use in the middle of hose piping.
Applications: For air blowing and air piping in precision machinery, printing, painting, food, optical parts, etc.
Xem thêm

Thông tin sản phẩm

Features

  • Uses a hollow fiber membrane filter with a filtration accuracy of 0.01 microns.
  • Shuts out water droplets and foreign objects in the piping.
  • This is to support the main filter system.
  • It is useful for in-line use in the middle of hose piping.

Applications

  • For air blowing and air piping in precision machinery, printing, painting, food, optical parts, etc.
Specifications in detail
Fluid temperature: 5 to 50°C
Normal pressure: 0 to 0.8MPa
Membrane area: 80 (cm2)
Filtration accuracy (μm): 0.01
Outer diameter (mm): φ21
Length (mm): 83
Connection diameter: Bamboo shoot (other hose inner diameter Φ7mm)
Compatible fluid: Air

JOPLAX TF-20N-C
