Features

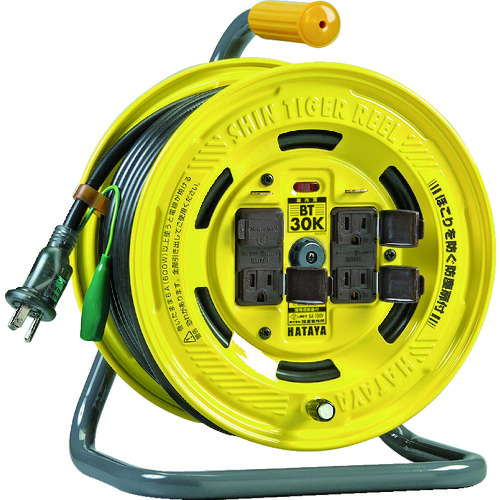

- This cord reel has a compact design, is practical, robust, and highly cost-effective.
- It detects abnormal temperature rises in the wires and automatically cuts off the power supply. This prevents dangerous melting and burning of wires. It is a reliable protective function.
Applications
- For construction and building sites, civil engineering works, maintenance work, plant construction, facility construction, etc.
Specifications in detail
AC100V
outlet with dustproof door and dedicated breaker
outlet with dustproof door and dedicated
breaker
for earth leakage protection Wire type: VCT Wire specification length (m): 30 Wire specification thickness ((mm2)): 2.0 Wire specification number of cores (C): 3 Rated current (A): 6 Outlet specification rating: 2P, 15A, 125V Earthed outlet specification shape: (3-phase 1) Number of outlet specifications: 4 Temperature sensor: Yes Power indicator lamp: Yes Ground terminal: Yes 2P/3P compatible plug: Yes Earth leakage breaker specification: Dedicated for earth leakage protection
for earth leakage protection
Wire type: VCT
Wire specification length (m): 30
Wire specification thickness ((mm2)): 2.0
Wire specification number of cores (C): 3
Rated current (A): 6
Outlet specification rating: 2P, 15A, 125V Earthed outlet
specification shape: (3-phase 1)
Number of outlet specifications: 4
Temperature sensor: Yes
Power indicator lamp: Yes
Ground terminal: Yes
2P/3P compatible plug: Yes
Earth leakage breaker specification: Dedicated for earth leakage protection
HATAYA BT-30KS
