Features
- The type with a temperature sensor detects an abnormal rise in temperature of the electrical wire and automatically cuts off the power supply, preventing dangerous melting or burning of the electrical wire.
- It is equipped with a leakage current breaker to protect against electrical leakage, overload (excessive use), and short circuits.
- It is a flexible soft cable.
Applications
- Construction and building sites.
- Civil engineering works.
- Conservation work.
- Plant construction.
- Facility construction.
- Electrical work.
Specifications in detail
AC100V
outlet with dustproof cap,
combined leakage current, overload and short circuit protection,
wire type: VCT soft cable,
wire specification length (m): 50,
wire specification thickness ((mm2)): 2.0,
wire specification number of cores (C): 3,
rated current (A): 5
, outlet specification rating: 2P, 15A, 125V, earthed outlet
specification shape: (three-phase 1),
outlet specification number: 4
, temperature sensor: Yes,
power indicator lamp: Yes,
ground terminal: Yes,
2P/3P compatible plug: Yes,
leakage current breaker specification: combined leakage current, overload and short circuit protection

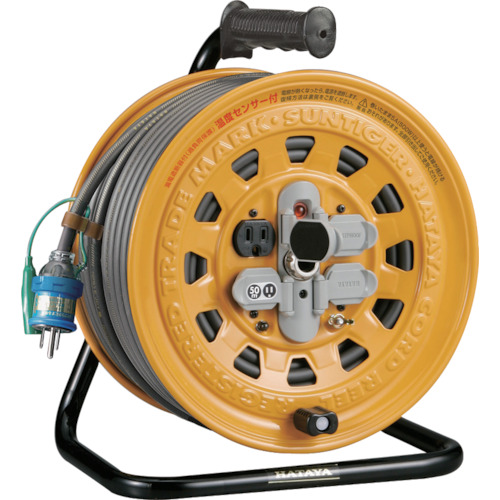

HATAYA BG-501KX
