- This caster uses special rubber wheels that are difficult for cutting chips to get stuck in. The special rubber wheels also have excellent oil resistance, so they can be used in environments where they come into contact with cutting oil.
- The moderate rubber elasticity not found in hard wheels allows for smooth running.
- The wheel bearing section uses radial ball bearings.
- For use in metal cutting factories and other locations where cutting chips fly or in environments where oil is used.
Specifications in detail
Plate Type
Radial ball bearing included
Wheel diameter D(mm): 200
Type: Swivel (with stopper)
Allowable load (daN): 220
Allowable load (kgf): 224.4
Wheel width(mm):46
Mounting height H(mm): 240
Mounting seat A(mm): 140
Mounting base B(mm): 140
Mounting pitch X(mm): 100-112
Mounting pitch Y(mm): 100-112
Mounting hole diameter P(mm): 13

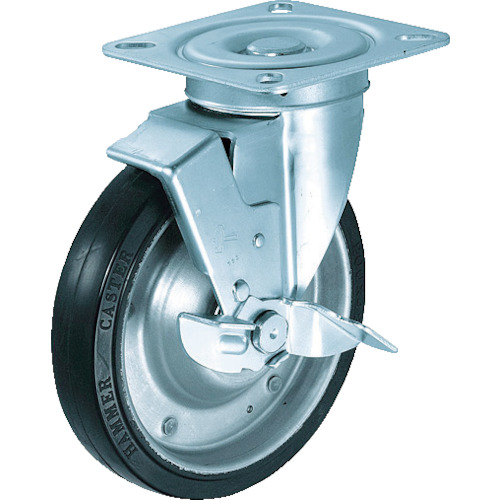

HAMMER CASTER 419S-XRZ200
