Features
- Extremely thick material is welded, and the rotating part is hardened.
- The bearing section uses radial ball bearings, which ensures smooth rotation of the wheels.
- Casters specially designed for heavy loads.
Specifications in detail
Plate type
Fixed type
Allowable load (daN): 400
Allowable load (kgf): 408
Wheel diameter D (mm): 100
Wheel width (mm): 50
Mounting height H (mm): 142
Mounting seat A (mm): 114
Mounting seat B (mm): 102
Mounting pitch X (mm): 80-88
Mounting pitch Y (mm): 76-64
Mounting hole diameter P (mm): 13
Type: Fixed type
Mounting pitch X×Y (mm): 80×76 (88

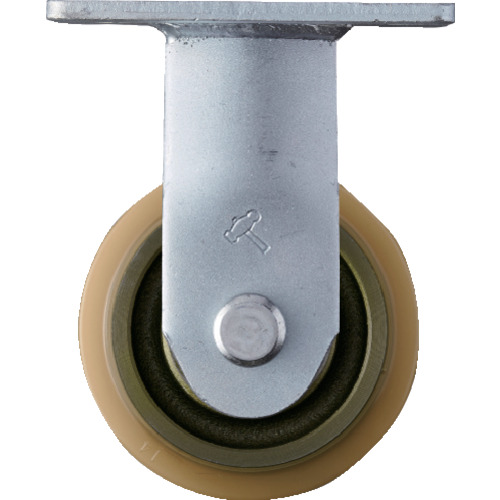

HAMMER CASTER 500BPR-CU100
