Thông tin sản phẩm

Plate Type
Radial ball bearing included
Wheel diameter D(mm): 150
Type: Fixed
Allowable load (daN): 220
Allowable load (kgf): 224.4
Wheel width(mm):40
Mounting height H(mm): 199
Mounting seat A(mm): 140
Mounting base B(mm): 94
Mounting pitch X(mm): 100-112
Mounting pitch Y(mm): 56-50
Mounting hole diameter P(mm): 11

HAMMER CASTER 420JR-XRZ150

HAMMER CASTER Việt Nam | Hammer Special Rubber Wheel XRZ J Series Fixed 150mm MW4789075

Thương hiệu: HAMMER CASTER

Liên hệ

Đặc tính

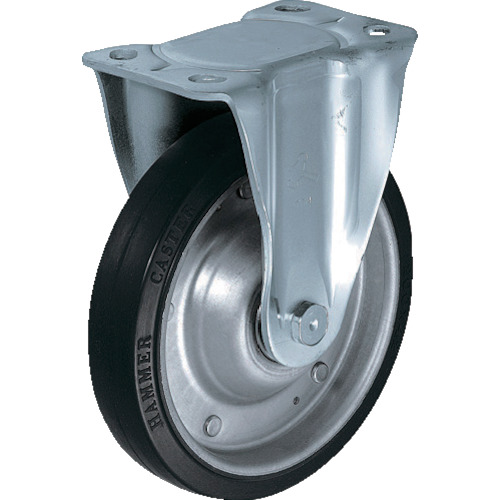

This caster uses special rubber wheels that are difficult for cutting chips to get stuck in. The special rubber wheels also have excellent oil resistance, so they can be used in environments where they come into contact with cutting oil.
The moderate rubber elasticity not found in hard wheels allows for smooth running.
The wheel bearing section uses radial ball bearings.

Ứng dụng

...

Xem thêm

Các thương hiệu bán chạy

Thông tin sản phẩm

Plate Type
Radial ball bearing included
Wheel diameter D(mm): 150
Type: Fixed
Allowable load (daN): 220
Allowable load (kgf): 224.4
Wheel width(mm):40
Mounting height H(mm): 199
Mounting seat A(mm): 140
Mounting base B(mm): 94
Mounting pitch X(mm): 100-112
Mounting pitch Y(mm): 56-50
Mounting hole diameter P(mm): 11

HAMMER CASTER 420JR-XRZ150
