Features
- This is a fixed caster that can be used in conjunction with the swivel casters 420S/413S.
- It is widely used in factories and offices, and is robust and stable, making it ideal for transporting heavy objects.
Specifications in detail
Plate type
Permitted load (daN): 150
Permitted load (kgf): 153
Wheel diameter D (mm): 125
Wheel width (mm): 33
Mounting height H (mm): 168
Mounting seat A (mm): 140
Mounting seat B (mm): 94
Mounting pitch X (mm): 100-112
Mounting pitch Y (mm): 56-53
Mounting hole diameter P (mm): 11
Type: Fixed type
Mounting hole diameter (mm): 11
Mounting seat (mm): 140 x 94
Mounting dimensions (mm): 100 x 56 (112 x 53)
Mounting height (mm): 168

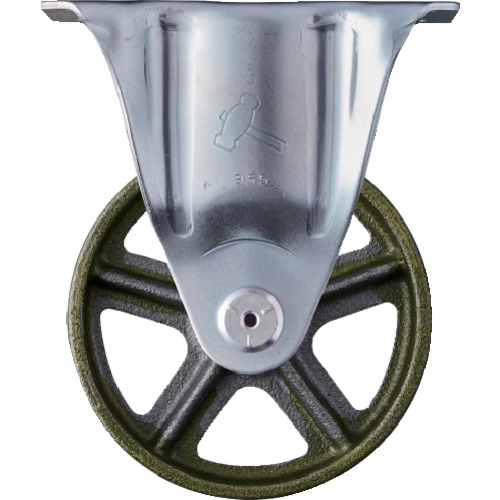

HAMMER CASTER 420SR-C125
