- The compact design allows for a low mounting height, and is smaller than conventional casters, yet can withstand heavy loads.
- Aluminum wheels are used for the wheels to reduce weight.
- For equipment that requires a low floor and heavy loads.
Specifications in detail
Plate Type
Low-floor type
Fixed
Wheel diameter D(mm): 65
Type: Fixed
Allowable load (daN): 300
Allowable load (kgf): 306
Wheel width(mm):40
Mounting height H(mm): 90
Mounting seat A(mm): 82
Mounting seat B(mm): 89.5
Mounting pitch X(mm): 63
Mounting pitch Y(mm): 63
Mounting hole diameter P(mm): 8.8
Allowable load (N): 3000

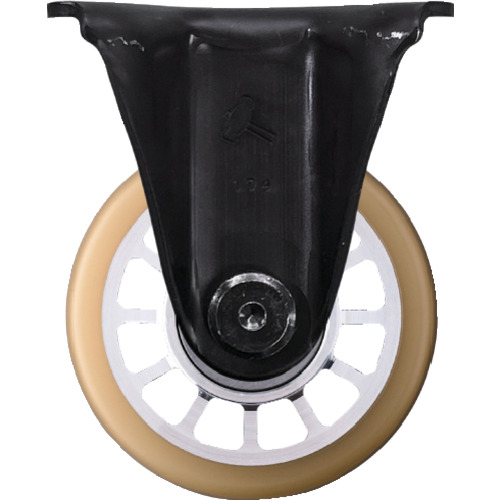

HAMMER CASTER 540SR-BAU65
