Thông tin sản phẩm

  • This caster has a very unique installation method.
  • It is suitable for all light-duty products used in homes and businesses.
  • It can be installed on the side when there is no space for installation on the bottom, etc.
  • For DIY etc.
Specifications in detail
Plate Type
Wheel diameter D(mm): 38
Type: Fixed
Allowable load (daN): 40
Allowable load (kgf): 40.8
Wheel width(mm):17
Mounting height H(mm): 41
Mounting seat A(mm): 35
Mounting seat B(mm): 25
Mounting pitch X(mm): 12
Mounting hole diameter P(mm): 6.5
Boss width B(mm): 20
Hole diameter d(mm): 6.2

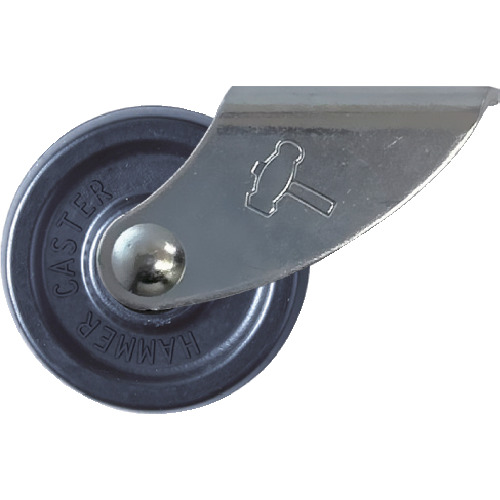

HAMMER CASTER 155-U40

HAMMER CASTER Việt Nam | Hammer 155 type fixed elastomer wheel 40mm MW6094254

Thương hiệu: HAMMER CASTER
Còn hàng
Liên hệ

MADE IN JAPAN

This caster has a very unique installation method. It is suitable for all light-duty products used in homes and businesses.
It can be installed on the side when there is no space for installation on the bottom, etc. For DIY etc.
Xem thêm

Thông tin sản phẩm

  • This caster has a very unique installation method.
  • It is suitable for all light-duty products used in homes and businesses.
  • It can be installed on the side when there is no space for installation on the bottom, etc.
  • For DIY etc.
Specifications in detail
Plate Type
Wheel diameter D(mm): 38
Type: Fixed
Allowable load (daN): 40
Allowable load (kgf): 40.8
Wheel width(mm):17
Mounting height H(mm): 41
Mounting seat A(mm): 35
Mounting seat B(mm): 25
Mounting pitch X(mm): 12
Mounting hole diameter P(mm): 6.5
Boss width B(mm): 20
Hole diameter d(mm): 6.2

HAMMER CASTER 155-U40
